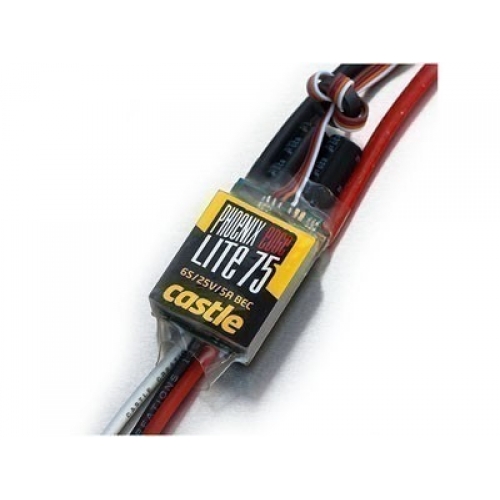

PHOENIX EDGE LITE 75 (25V 75 AMP) BRUSHLESS ESC W/5A BEC (Best for Goblin 380) (SOLD OUT)

Description

FEATURES:

• Ideal for 450 class helis and .25-.35 fixed wing aircraft
• Programmable using Castle Link USB Adapter, CSEM6301
• User programmable white auxiliary wire can be used for governor gain input adjustments, serve as an audible beacon after a crash, act as an RPM output for 3 axis gyros that support RPM sensors, and used as an ESC or receiver arming lock
• One year limited warranty through Castle Creations beginning at date of purchase


INCLUDES:

• Phoenix Edge Lite 75 Amp ESC with Instruction Sheet


REQUIRES:

• Battery and motor connectors of modeler's choice


SPECS:

• Input Voltage: 2S-8S LiPo
• Max Continuous Amps at Full Throttle: 75
• BEC Voltage: User selectable from 5-8.4V
• BEC Output Amperage: 5 amp peak
• Dimensions: 1.2 x 2.6 x 0.8" (30.5 x 66 x 21.4mm)
• Weight: 2.9oz (81g) with wires
                1.4oz (41g) without wires
