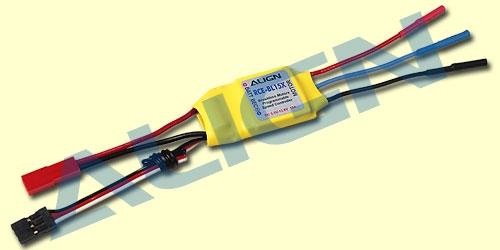

Align 15A Brushless ESC(Governer Mode) RCE-BL15X [KX880003A] (SOLD OUT)
![]() Click to enlarge |
|
Description
Features:
●5-6V step-less adjustable BEC output allowing custom voltage setting to match servo specification.
●BEC output utilizing linear power system, suitable for 7.4-11.1V (2S-3S) Li battery, with continuous current rating of 2A, and burst rating of 3A.
●Three programmable throttle speed settings to support quick throttle response.
●Include soft start and Governor Mode.
●Small and compact PCB design for lightweight and simple installation.
●Large heat sink for optimum thermal performance.
●Highly compatible to work with 98% of all brushless motors currently on the market.
●Ultra-smooth motor start designed to run with all kinds of brushless motors.
●The power inlet utilizes a Japanese made 'Low ESR' capacitor in order to provide stable power source.
●The throttle has more than 200 step resolution that provides great throttle response and control.
Specification:
●Contimuous current:15Amps with porper air flow
●Surge current:20Amps
●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
●Supporting maximum RPM:2poles=>190,000rpm
●Supporting input voltage:5.5V~12.6V
●BEC output voltage: 5-6V step-less adjustment
●Supporting battery types: Li-Po 2~3 cells
●Size:42X24X9.3mm
●Weight:15g
Accessories:
plus
●ALIGN standard 4mm socket terminal X3pcs
