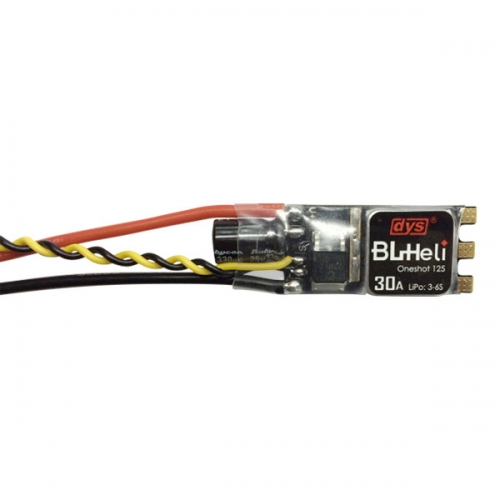

DYS XM30A ESC (SOLD OUT)

Description

The new DYS XM30A ESCs are specially designed for high KV power racing motors. The small size and integrated solder pads make for a cleaner and easier installation and are matched perfectly with the new DYS MR2205-2750KV brushless racing motors.

Specs

• Input voltage: 3-6s Lipo
• BEC: NO
• OPTO with F396 chip
• Support Oneshot125, Oneshot42 and Multishot
• Size(mm): 45L*16.5W*5.8H
• Type: BLHeli Bootloader & Firmware
• Weight: 11.5g

Features

• XM series ESC is the upgraded version of the SN series with advanced processor, a basic frequency up to 50MHz, and faster overall processing capacity to better support high KV motors
• Designed for quick multi-rotor throttle response
• Twisted pair cable is used to deliver throttle signal, reducing signal crosstalk while further stabilizing copper wire transmission
• New miniaturization and ultra-low resistance MOSFET, powerful flow resistance, and professional MOS Drive chips improve efficiency
• Newly designed PCB board improves impact resistance.
• Sub-miniaturization design reduces weight while still providing a high performance filtering capacitor
• Refresh rate of throttle signal up to 500Hz, compatible with all modern flight controllers, including the Naze32 Rev6 and SP Racing F3
• Ultra-high speed Oneshot125 with 3000Hz refresh rate provides quick, smooth throttle response
• Fully programmable via USB port, with two-way and 3D modes for high speed racing and acrobatics.
