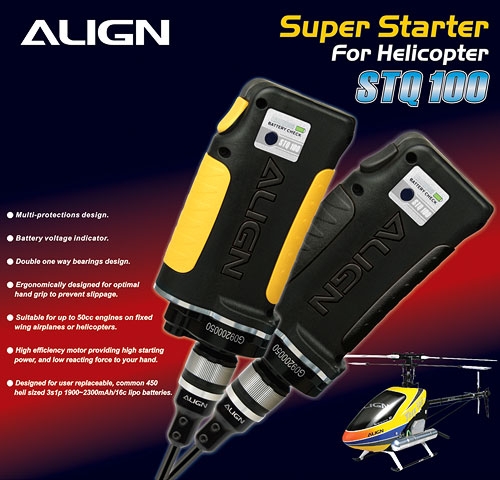

Super Starter (For Helicopter) HFSSTQ01

Description

Instructions:
● Ergonomically designed for optimal hand grip to prevent slippage, light
weight, and easy to assemble/disassemble for transport ease. Suitable
for fixed wing airplanes or helicopters, engine can be started with a
simple one hand press on the button.
● Suitable for up to 50cc gasoline engine or 300 class nitro engine.
● Designed for user replaceable, common 450 heli sized
3S1P 1900~2300mAh/16c lipo batteries. Fully charged battery is
capable of 500 starts and beyond. Battery packs are charged with any
T-REX 450 battery chargers.
● Starting adaptor includes double one way bearing design.
● High efficiency motor providing high starting power, and low reacting
force.
● LED battery voltage indicator and over-discharge protection circuitry.
● Battery undervoltage protection.
● Overheating protection
● Protection against stalling by flooded torque overloading engine.

Specification:
●Suitable battery:Li-Po 3S1P 11.1V 1900~2300mAh 16C and above(maximum size 112x35x24mm)
●No load rotation speed:2300rpm
●Battery undervoltage:10.8V
●Quiescent current:0 mA
●Motor overheat protection:80°C
●Decelerate gear ratio:5.3:1
●Size:80x60x390mm
●Weight:700g (w/o battery)
