Description

Features

5.8GHz Rx 32 channels SMA connector
Batterie
HDMI Anschluss
2m Audio/Video-Kabel mit Stromanschluss. Adapter für die TBS Groundstation können bestellt werden.
Zwei verschiedene Optiken, können nach Belieben gewechselt werden.

Product Details

Screen resolution: 1280×800
Field of View: 72 degree
Fully adjustable picture via intuitive menus
General
Control via button panel (distinct button design for “blind” operation)
Rugged design with extremely durable materials
Very high comfort
Adjustable straps
Different density foam pads allow you to adapt the goggles to your needs.
Weight: 400g (excluding battery)
Easy to clean optics
Electrical Properties
Current consumption 340mA@12V
Supply voltage: 6-15V Recommended 2S LiPo
Reverse voltage protection
Connectors
HDMI type C (HDMI-in)
XS9JK (latched high end connector): Power Supply, Video-in, Audio-in, Ground, 5V out
SMA antenna connector
Integrated Features
32 channel 5.8GHz A/V receiver
8 segment display
Sensitivity: -90dBm
Built-in speaker with volume control on buttons
Frequencies
Band 1: 5725, 5745, 5765, 5785, 5805, 5825, 5845, 5865
Band 2: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
Band 3: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band 4: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880

Item Packing

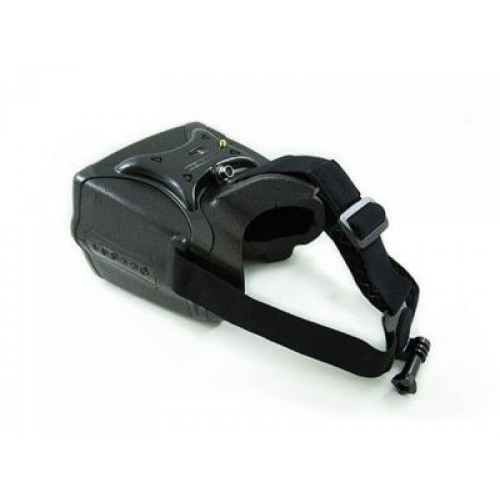

-Headplay Goggle 5.8G FPV For Racing qudcopter Black  X 1
