FXT Version II 5 Inch 800*480 40CH 5.8G Diversity FPV Goggle HD Port Build-in DVR for RC Drone
 Click to enlarge |
|
Description
Notice:Please contact our customer service to get the manual.
Description:
Brand Name: FXT
Item Name: version II FPV Goggle
Display sreen:

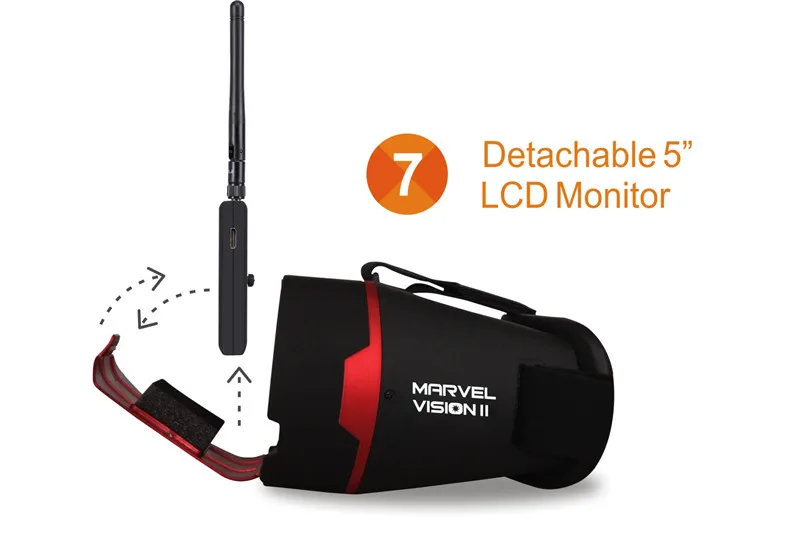

Screen size: 5”
Screen type: TFT LCD Screen/long life
Resolution: 800*480 pixels
Aspect ratio: 16:9
Brightness: 600cd/m2
Video format: AUTO/NTSC/PAL
Audio: 6.5MHz
Input signal: AV/HDMI
HD IN (mini HDMI): Version 1.1 digital
Output signal: AV
Input voltage: 7-28v
Power consumption: 560mA@ 12v
Work status OSD display: YES
Recording format: AVI
Support TF card: Max 32GB micro SD card
Antenna connector: SMA
Dimension: 129mmx89mmx11mm
5.8GHz receiver:
Sensitivity: -90dBm
Frequency range: 5645 MHz-5945MHz
Channel: 40 channels (it can't be customized )
One-key-search frequency: Yes
Audio: 6.5MHz
Goggle:
Color: Black&Red

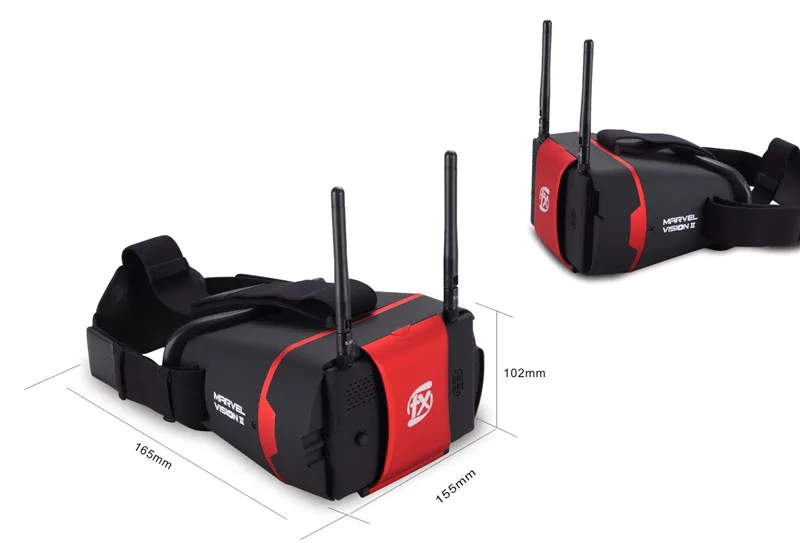

Dimension: 165x155x102mm
Weight: 374g
Brightness: 600cd/m2
Video format: AUTO/NTSC/PAL
Audio: 6.5MHz
Input signal: AV/HDMI
HD IN (mini HDMI): Version 1.1 digital
Output signal: AV
Input voltage: 7-28v
Power consumption: 560mA@ 12v
Work status OSD display: YES
Recording format: AVI
Support TF card: Max 32GB micro SD card
Antenna connector: SMA
Dimension: 129mmx89mmx11mm
5.8GHz receiver:
Sensitivity: -90dBm
Frequency range: 5645 MHz-5945MHz
Channel: 40 channels (it can't be customized )
One-key-search frequency: Yes
Audio: 6.5MHz
Goggle:
Color: Black&Red
Dimension: 165x155x102mm
Weight: 374g
Features:
1.Plug&Play

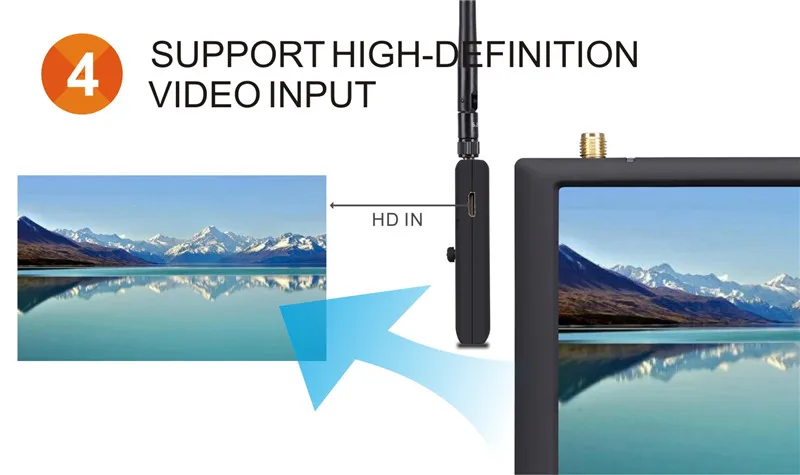

2.With HDMI IN,version1.1

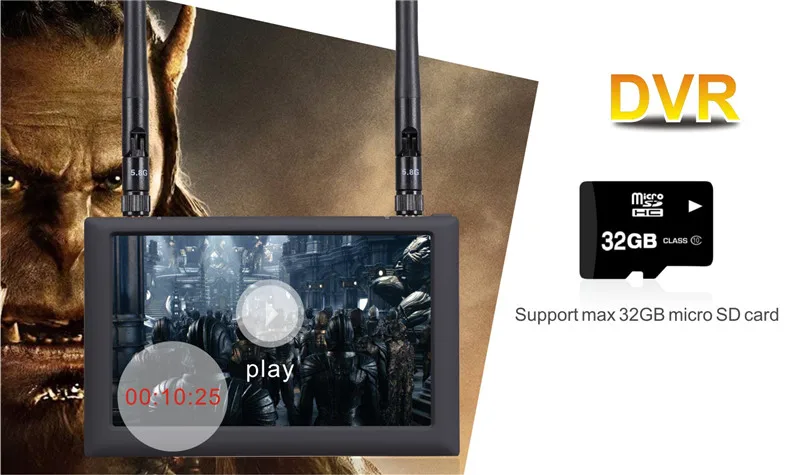

3.DVR functionality,support one-key-redcording
4.Build-in diversity receiver,automatically receive best signal

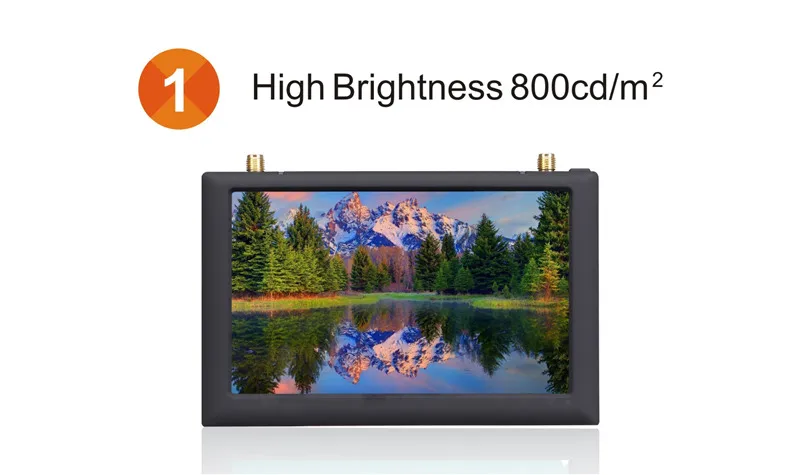

5.High brightness 800cd/m2

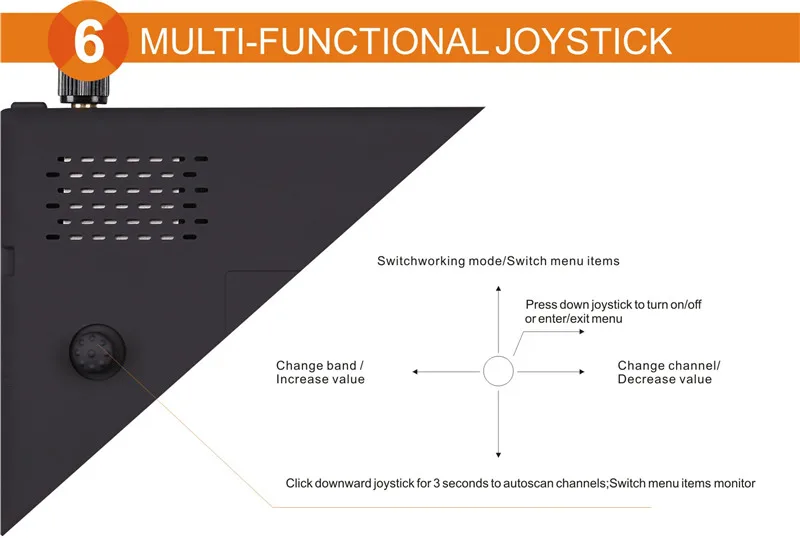

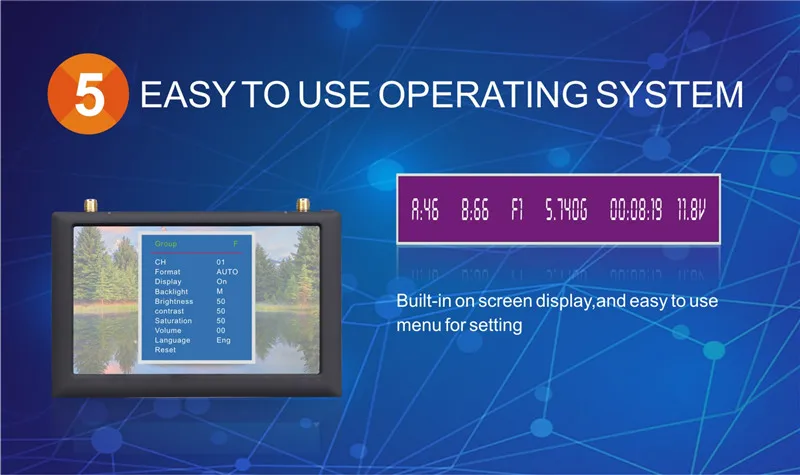

6.Easy to use operating system and 5-way joystick with channel auto scan

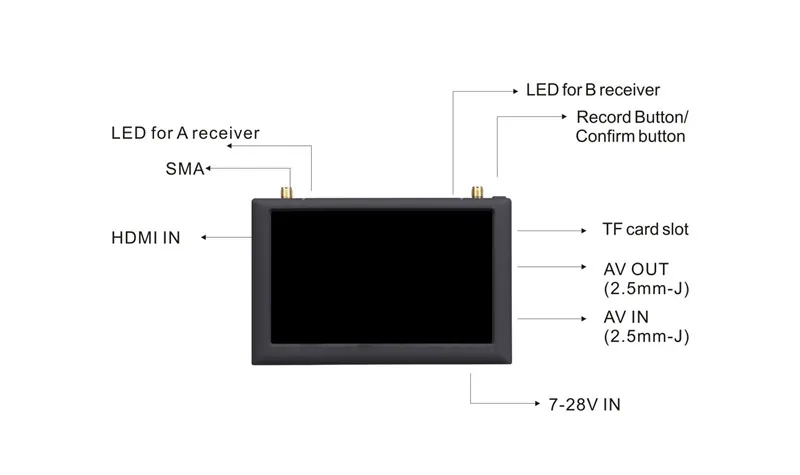

7.With AV IN and AV OUT

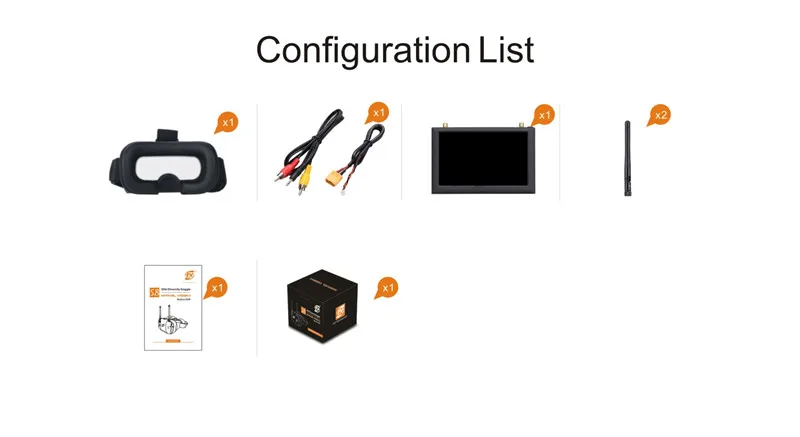

Package included:
1 x FXT version II FPV Goggle
