Video Aerial Systems IBCrazy Airscrew Race Spec (RHCP) (SOLD OUT)

Description

Designed with the FPV racer in mind, these antennas combine small form and high durability with top-notch performance for the ultimate competitive advantage. These antennas have strengthened cables with a special low profile choke to ensure the highest axial ratio and video clarity. While they do run exposed, the antennas have a large reinforced nylon hub at the feed which will allow a racer to repeatedly bend them back to shape and fly again after many crashes.

Features

• Easily bends back to shape after a crash.
• Exposed antenna to save weight.
• Lower profile version of the LHCP Airblade
• Shaft (center feed) is reinforced with a thick bead of nylon.
• Smaller, lighter, more compact with same performance.

Specs

• Frequency: 5.8GHz (5725-5875MHz)
• Beam-width: 360deg
• Axial Ratio: -0.67
• Gain: -1.47DBIC
• Dimension: 53mm tall by 40mm wide at the top
• Weight: 6g
• Polarization: Right Hand Circularly Polarized (RHCP)

Includes

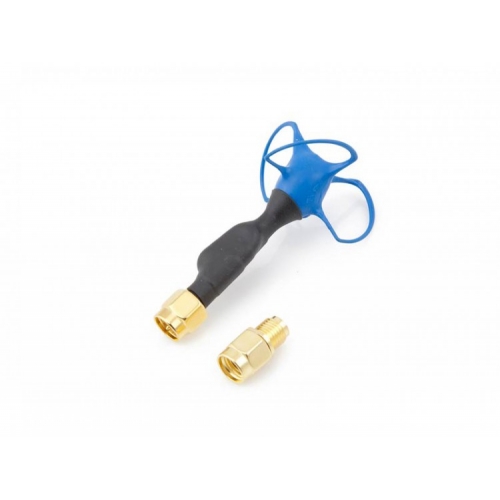

• 1x 5.8Ghz antenna with straight SMA male connector
• 1x straight RP-SMA adapter for use with RP-SMA systems
