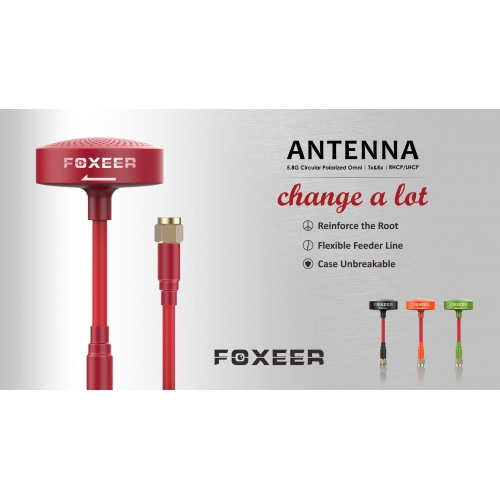

FOXEER 5.8G Circular RHCP Antenna

Description

FOXEER 5.8G Circular-polarized omni  antenna, can be used both at VTx antenna and VRx antenna.
SWR: <1.5, Tuned for 5600~5950Mhz
Polarization: LHCP/RHCP

Specification:

Frequency range: 5600-5950 MHz
Gain : 3DBi
SWR: <1.5
3dB horizontal lobe width: 360°
3dB verticle lobe width: 120°
Polarization: omni
Max power: 50W
Resistance: 50Ω
Lightning protection: DC Grounded
Polarization: LHCP / RHCP
Connector: RP-SMA / SMA
Size: 105×35mm (feeder line 75mm）
Weight: 12g
Material: Cu

Package Included:

1 x Antenna
