TBS UNIFY PRO32 NANO 5G8 (Up to 400mW)

Description

MAIN FEATURES
Smallest, lightest video transmitter on the market
Up to 400mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race. Now with team-race capability!
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified
PITMODE - MADE TO RACE

CLEANSWITCH - NEIGHBOR FRIENDLY
CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly ... that's how we like it at TBS :)

SPECIFICATIONS
Operating Voltage: 4.5 - 5.5V
Operating Temperature: watch for normal airflow
Video Input Impedance: 75 Ohm
Weight: 1g
Dimensions: 15 x 13 x 2mm
Antenna Connector: u.FL socket
Video Format: NTSC/PAL
Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW)

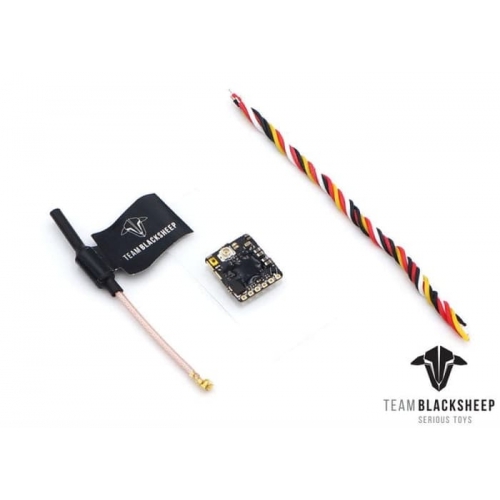

INCLUDED
1x TBS UNIFY PRO32 5G8 Video transmitter
1x Silicone cable set (pre-tinned)
1x Linear whip antenna
1x Shrink Tube

DOWNLOADS
TBS UNIFY Pro32 Manual
TBS UNIFY Pro32 Manual (German)
Declaration of Conformity
* HAM license is required for operation on HAM channels, and HAM power levels! The VTx ships with only legal channels enabled, please consult the manual on unlocking procedure.
