Osmo - External Battery Extender

Description

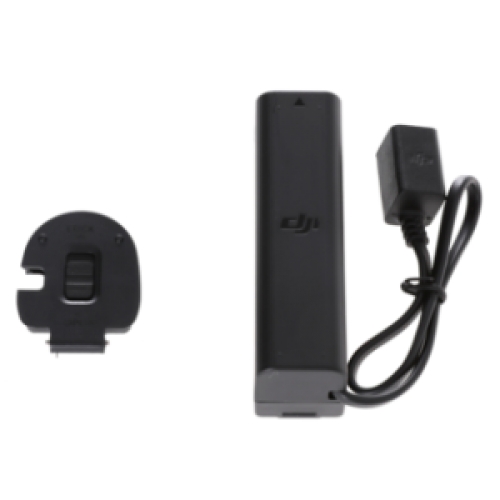

The Osmo external battery extender is designed to prolong the operating time of the Osmo by connecting to external power sources such as a dedicated DJI charger or Intelligent Battery. It is ideal for using the Osmo in extended period operations such as timelapse. Note: If using a DJI Intelligent Battery as the power supply, a Battery (10 PIN-A or 2 PIN) to DC Power Cable is required and can be purchased separately from the official DJI Online Store. Specifications Supported DJI Charger Models PH4C100 (Phantom 4 - 100W Charger) ADE019 (Phantom 3 - 100W Charger) A14-057N1A (Phantom 3 - 57W Charger) ADE018 (Inspire 1 - 180W Charger) A14-100P1A (Inspire 1 - 100W Charger) Supported DJI Car Charger Models C4S90-4 (Phantom 4 Car Charger) C4S90 (Phantom 3 Car Charger) C6S90 (Inspire 1 Car Charger) Supported DJI Intelligent Battery Models PH4-5350mAh-15.2V (Phantom 4 Intelligent Flight Battery*) PH3-4480mAh-15.2V (Phantom 3 Intelligent Flight Battery**) TB47/TB48 (Inspire 1 Intelligent Flight Battery**) 844297-4350mAh-15.2V (Ronin Intelligent Battery**) 824380-3400mAh-14.8V (Ronin Intelligent Battery**) 423496-1580mAh-14.4V (Ronin-M Intelligent Battery**) * Must be used with Battery (10 PIN-A) to DC Power Cable ** Must be used with Battery (2 PIN) to DC Power Cable Osmo External Battery Extender Quick Start Guide
