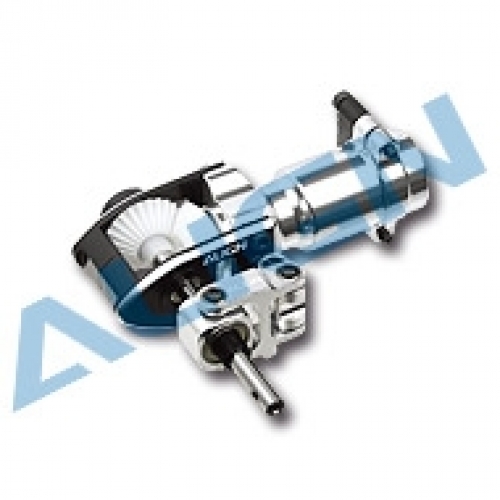

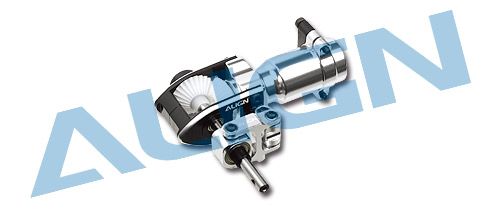

H50193 500PRO Tail Torque Tube Unit

Click to enlarge

Description

Product:

Illustration:

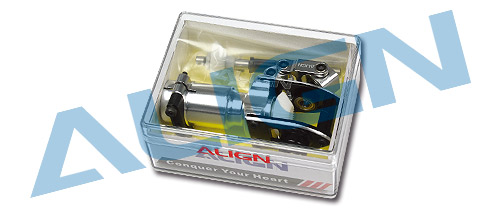

Package:

Instruction:	Specification:
●Brand new tail gear box with higher material quality and easy maintenance. ●Utilizes dual point attachment design for zero play and higher precision control feel. ●Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth. ●6061-T6 Aluminum alloy material and CNC processed. ●Suitable for all 500 class machines.	●Metal plate(L) × 1 ●Metal plate(R) × 1 ●500 Metal tail unit set × 1 ●500 Tail rotor shaft assembly set × 1 ●Long umbrella gear/25T × 1(Φ18.5xΦ8x25.4mm) ●Collar × 1(Φ10.5xΦ11.9x12.5mm) ●Bearing MR128 × 2(Φ8xΦ12x2.5mm) ●Bearing 684ZZ × 2(Φ4xΦ9x4mm) ●Socket screw × 4(M2.5x6mm) ●Socket screw × 1(M2.5x14mm) ●Socket button head screw × 2(M2.5x19mm) ●Vertical stabilizer mount × 1 ●I-shaped Arm × 1 ●Mount Link × 1 ●Bearing holder × 1(11.5x9x12.5mm ) ●Slider Shaft (M6) × 1(Φ4xΦ4.7x15.7mm) ●Linkage ball A(M2x3.5) × 1(Φ4.75x8.18mm) ●Bearing mount washer × 1(Φ6x Φ7.4x3mm) ●Bearing FMR52ZZ × 6(Φ2xΦ5xΦ6x2.3mm) ●Bearing MR106ZZ × 2(Φ6xΦ10x3mm) ●Socket button head screw × 6(M2x4mm)
