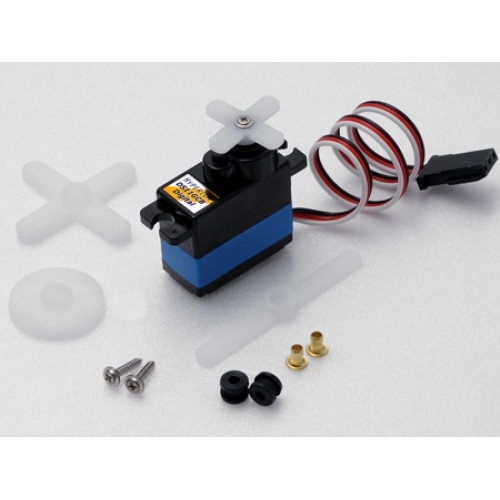

Hyperion Atlas DS11-AMB [HP-DS11-AMB] - This is another alternative servo after Align DS410M or Hitec HS65MG

Click to enlarge

Price:	$34.00 (Rp 578,000.00)
Availability:	In Stock
SKU:
Average Rating:	Not Rated

Description

Features:

Digital Servo
Fully programmable
Download Programming Manual
Download ATLAS Datasheet

Perfect centering, top ball bearings, and choices of tough CarbonPoly or Metal Gear Trains.

HP-DS11GCB is a super-fast servo for smaller helicopters, to cure those tail-wagging blues forever. HP-DS11SCB is the "all-round" servo for model airplanes and heli collective.

Metal-geared HP-DS11AMB is the one for Rudder/Tailwheel, Glider ailerons, Small Retracts and other high-stress applications.

Specification:

Servo type: Programmable Digital Micro Servo

Dimensions (mm): 23.5 x 11.5 x21.0

Weight: 10.5g

Speed (4.8v/6v): 0.18/0.15

Dynamic Torque (kg/cm @ 4.8/6.0V): 2.1/2.5

Holding Torque (kg/cm @ 4.8/6.0V): 4.2/5.0

Gear Train Primary Material: Metal

Bearing: Top Ball

Programmable	Yes, with free PC software connected via USB adapter (HP-HP-AT-PRGUSB)
Rotation in degrees	Adjustable 30 to 140 degrees total, 90 degree default (45 each way)
Adjustable travel speed	Yes, 1% to 100% of Rated Speed (100% default)
Maximum input voltage	Unloaded input voltage should never exceed 7.8V, loaded input voltage max 6.25V
