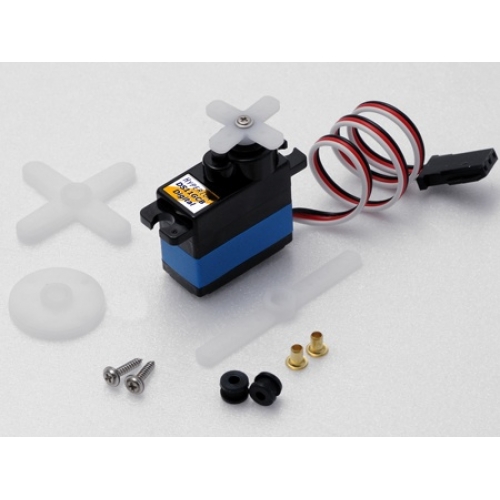

Hyperion Atlas DS11-GCB Servo [HP-DS11-GCB] - This super fast digital servo is an alternative after Align DS420 rudder servo or Futaba s3154 rudder servo
![Hyperion Atlas DS11-GCB Servo [HP-DS11-GCB] - This super fast digital servo is an alternative after Align DS420 rudder servo or Futaba s3154 rudder servo](http://e-hely.com/image/cache/products/HP-DS11-GCB.jpg-500x500.jpg "Hyperion Atlas DS11-GCB Servo [HP-DS11-GCB] - This super fast digital servo is an alternative after Align DS420 rudder servo or Futaba s3154 rudder servo") Click to enlarge |
|
Description
Features:
- Digital Servo
- Fully programmable
- Download Programming Manual
- Download ATLAS Datasheet
Perfect centering, top ball bearings, and choices of tough CarbonPoly or Metal Gear Trains.
HP-DS11GCB is a super-fast servo for smaller helicopters, to cure those tail-wagging blues forever. HP-DS11SCB is the "all-round" servo for model airplanes and heli collective.
Metal-geared HP-DS11AMB is the one for Rudder/Tailwheel, Glider ailerons, Small Retracts and other high-stress applications.
|
|
HP-DS11-SCB |
HP-DS11-GCB |
HP-DS11-AMB |
|
Servo type |
Fully programmable digital micro servo |
||
|
Dimensions mm |
23.5x11.5x21.0 |
||
|
Weight gram |
10.0g |
10.3g |
10.5g |
|
Speed (sec/60 deg @ 4.8/6.0V) |
0.15/0.13 |
0.06/0.05 |
0.18/0.15 |
|
Dynamic torque (kg/cm @ 4.8/6.0V) |
1.7/2.0 |
0.8/1.0 |
2.1/2.5 |
|
Holding torque (kg/cm @ 4.8/6.0V) |
3.4/4.0 |
1.6/2.0 |
4.2/5.0 |
|
Gear Train primary material |
CarbonPoly |
Light Metal |
|
|
Bearing |
Top Ball |
||
|
Programmable |
Yes, with free PC software connected via USB adapter (HP-HP-AT-PRGUSB) |
||
|
Rotation in degrees |
Adjustable 30 to 140 degrees total, 90 degree default (45 each way) |
||
|
Adjustable travel speed |
Yes, 1% to 100% of Rated Speed (100% default) |
||
|
Maximum input voltage |
Unloaded input voltage should never exceed 7.8V, loaded input voltage max 6.25V |
||
