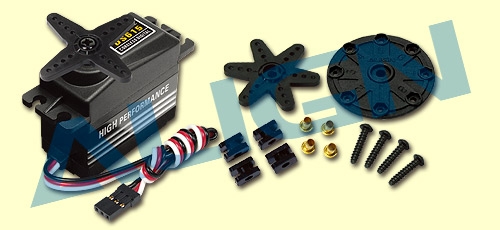

DS615 Digital Servo HSD61501

Click to enlarge

Description

Instruction:	Specification:
●Higher performance superiority, increased output torque, faster reaction time, resulting in higher holding power on those momentary pauses in between 3D maneuvers, providing precise control feel. ●Coreless Motor Design for fast speed, high efficiency, and low power consumption. ●Hardened high strength super alloy gears that increase the lifetime. ●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency. ●Supports digital & analog control signal. ●Powerful and precise servo, suitable for T-Rex 600/700 swashplate and rudder use.	●Stall torque:10.4kg.cm(4.8V) 12.8kg.cm(6.0V) ●Motion speed:0.09sec/60°(4.8V) 0.07sec/60°(6.0V) ●Rating voltage:DC 4.8-6V ●Temperature range:-20°C~+60°C ●Dimension:40.1 x 20.1 x 37.3mm ●Weight:56g ●1520μs standard band
	Accessories:
	●Servo rudder piece x 2 ●Set screw x 1 ●Rubber damper x 4 ●Brass grommet x 4 ●Socket button head tapping screw × 4(T2.6x12mm) ●F Servo horn x 1
