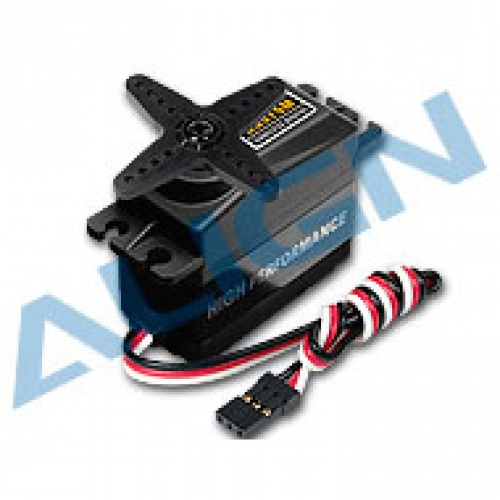

Align DS515M Digital Servo HSD51501(SOLD OUT)

Click to enlarge

Description

Product:

Package:

Instruction:	Specification:
●High rigidity, shock resistant metal gears. ●Coreless Motor Design for fast speed, high efficiency, and low power consumption. ●10 Bits signal resolution for smooth movements. ●Fast speed with high torque of 5.0kg/cm. High strength composite alloy gears with durable structure characteristics. ●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency. ●Supports digital & analog control signal. ●Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use.	●Stall torque:4.0kg.cm(4.8V) 5.0kg.cm(6.0V) ●Motion speed:0.12sec/60°(4.8V) 0.101sec/60°(6.0V) ●Rating voltage:DC 4.8-6V ●Temperature range:-20°C~+60°C ●Dimension:35.1 x 15.1 x 29mm ●Weight:29g ●1520μs standard band
	Accessories:
	●Servo rudder piece x 2 ●Set screw x 1 ●Rubber damper x 4 ●Brass grommet x 4 ●Socket button head tapping screw(T2.6x12mm)x 4 ●D5AF Servo horn x 4

There are no additional images for this product.
