ALign BL700H High Voltage Brushless Servo HSL70001

Click to enlarge

Description

Instruction:	Specification:
●Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased. ●Supports 7.4v high voltage to provide optimal speed and torque performance of the brushless servo. ●Designed specifically for helicopters, with highest specifications on the market: 0.065sec/60°ultra fast speed and 20kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision. ● Ultra high 12 bits signal resolution for excellent precision and smoothness. ●Hardened high strength superalloy gears that increase the lifetime. ●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency. ● Supports both analog and digital control signals. ● Suitable for T-Rex 550/600/700 cyclic and rudder use.	●Stall torque:15.0kg.cm(6.0V) 20.0kg.cm(7.4V) ●Motion speed:0.085sec/60°(6.0V) 0.065sec/60°(7.4V) ●Rating voltage:DC 4.8-7.4V ●Temperature range:-20°C至+60°C ●Dimension:40.3 x 20.1 x 38.7mm ●Weight:69g ●1520μs standard band
	Accessories:

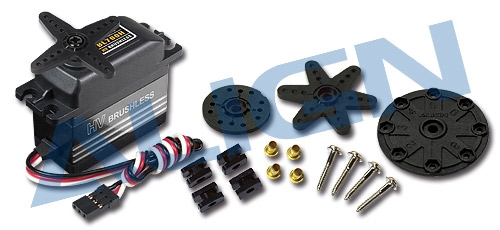

	●Servo rudder piece x 4 ●Set screw x 1 ●Rubber damper x 4 ●Brass grommet x 4 ●Tapping screw for servo x 4
