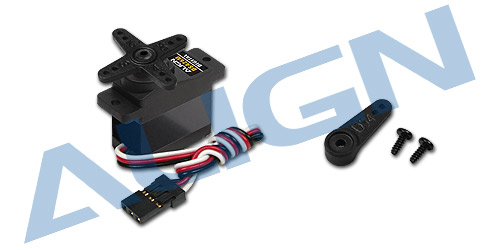

HSD42601 DS426M Digital Servo

Click to enlarge

Description

Product:

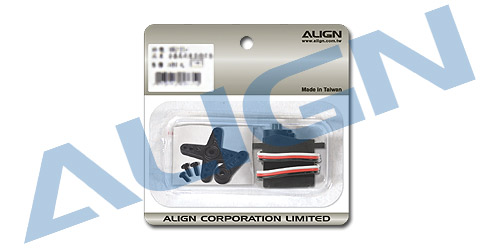

Package:

Instruction:	Specification:
●Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision. ●High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics. ●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency. ●Supports digital & analog control signal. ●Powerful and precise servo, suitable for T-Rex 250/450 rudder use.	●Stall torque:1.0kg.cm(4.8V) 1.2kg.cm(6.0V) ●Motion speed:0.07sec/60°(4.8V) 0.05sec/60°(6.0V) ●Rating voltage:DC 4.8-6.0V ●Temperature range:-20°C~+60°C ●Dimension:22.9 x 12 x 25.8mm ●Weight:13.9g ●1520μs standard band
	Accessories:
	●Servo rudder piece x 2 ●Set screw x 1 ●Tapping screw for servo x 2

There are no additional images for this product.
