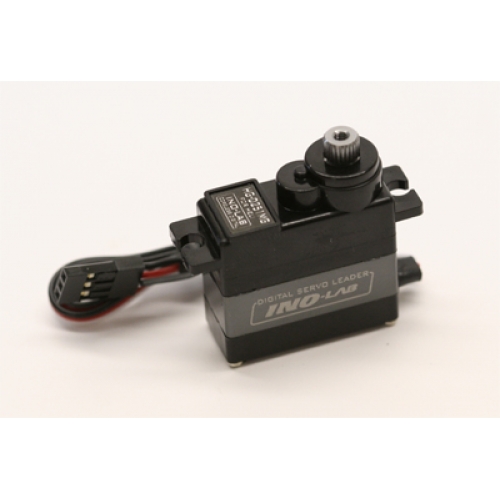

INO-LAB HG-D251MG METAL GEAR CORLESS DIGITAL Hi TORQUE CYLIC SERVO FOR TREX500

Click to enlarge

Price:	$67.50 (Rp 1,147,500.00)
Availability:	In Stock
SKU:	1
Average Rating:	Not Rated

Description

Product Details

INOLAB Metal Gear Digital Servo 9.7g
Made in Korea, excellent quality, precision and reliability.

The HG-D251MG ultra high torque metal gear digital servo with new coreless motor technology is a great choice for extremely high performance cyclic control on your 500 class helicopter.

Features:

High Torque
Metal Gear
Ball Bearing

Test Voltage:

4.8 VDC

6.0 VDC

Operating Speed:

Dynamic Torque:

Stall Torque:

0.15 sec (60°)

4.8Kg/cm (66.67oz/in)

5.4Kg/cm (75.13oz/in)

0.12 sec (60°)

5.6Kg/cm (77.60oz/in)

6.2Kg/cm (86.07oz/in)

ADDITIONAL TECHNICAL DATA
CONTROL SYSTEM	: PULSE WIDTH CONTROL
OPERATING VOLTAGE	: 4.8V ~ 6.0V
OPERATING TRAVEL	: 30°/ ONE SIDE PULSE TRAVELING 370us
DIRECTION	: COUNTERCLOCKWISE/ PULSE TRAVELING 1500 TO 1870
DEAD BANDWIDTH	: 2us
FEATURES
AMPLIFIER TYPE	: DIGITAL PULSE WIDTH CONTROLLER & FET DRIVER
LONG LIFE POTENTIOMETER	: 500,000 cycles
MOTOR TYPE	: CORELESS MOTOR
TOP BALL BEARING	: MR106 BALL BEARING
GEAR MATERIAL	: HEAVY DUTY CARBONITE GEAR & METAL GEARS
HORN GEAR SPLINE	: 25 SEGMENTS/ Ø5.96 (FUTABA TYPE)
SPLINED HORNS	: 4 CLASS
CONNECTOR WIRE LENGTH	: 270mm (10.63in)
CONNECTOR WIRE STRAND COUNTER	: 0.08mmx30EA
DIMENSIONS
SIZE	: 30.0x13.0x33.3mm (1.18x0.51x1.31in)
WEIGHT	: 24.40g (0.86oz) without the servo arm installed
