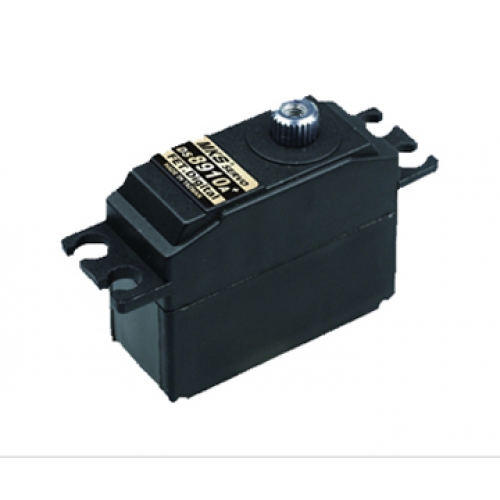

MKS Digital Mini Rudder Servo DS8910A+ (500 Size rudder servo)

Description

DS8910A+     <Narrow band>

Suitable Gyros

Spartan DS760、Spartan Quark、Futaba GY611、GY601、GY520、ALIGN GP700、GP750、Mikado V-Bar Tail、CSM SL720、Curtis Youngblood Mini-G 、Solid G、Thunder Tiger TG-7000

 Torque: 2.10 kg-cm (29.16 oz/in)(4.8V) │ 2.41 kg-cm (33.47 oz/in) (5.5V)

 Speed: 0.052 s (4.8V)  │  0.045 s (5.5V)

 Weight: 28 g (0.99 oz)

Dimensions: 35.8 x 15.2 x 29 mm (1.41 x 0.6 x 1.14 in)
Operating Voltage: 4.8 ~ 5.5 V DC Volts
Working frequence: 760μs / 560hz
Bearing Type: 2BB
Motor Type: Coreless Motor

please use 4S Nicd/NiMH or use UBEC @ 4.8V~5.5V
