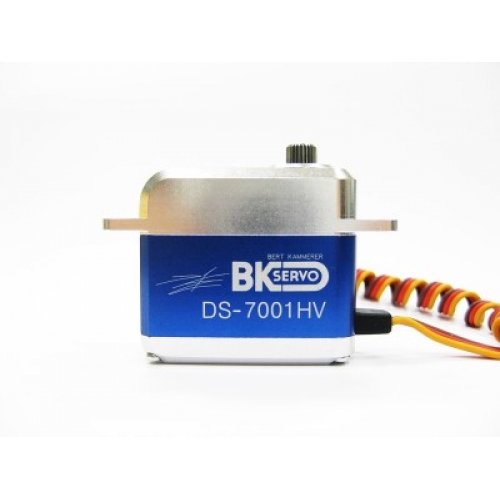

Bert Kammerer BK 7001HV Full Size Cyclic Servo
 Click to enlarge |
|
Description
Product description
The DS-7001HV is a high voltage, full size servo designed by Bert Kammerer. The servo features blazing fast speeds with very high torque and excellent centering and it is suitable for any high performance R/C helicopter requiring the use of full size servos.
Specifications:
Operation Voltage: 6V – 8.4V
Weight: 68g (2.40 Oz)
Torque:
17 kg/cm (236 oz/in) @ 6V | 19.5 kg/cm (270 oz/in) @ 7.4V | 21.3 kg/cm (295 oz/in) @ 8.4V
Speed:
0.07 sec/60 @ 6V | 0.055 sec/60 @ 7.4V | 0.049 sec/60 @ 8.4V
Dimensions: 20x40x37 mm
Frequency: 1520us/333 hz
Gear Type: Metal
Motor Type: Coreless
