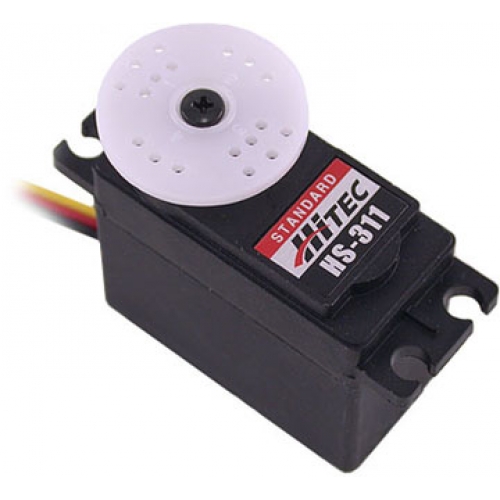

Hitec HS-311 Standard

Description

The HS-311 is the perfect servo for inexpensive applications. Do not let the price fool you though, this servo features many of the same aspects of more expensive servos. One peice circuit board and tight mesh gears ensures great durability. Comes with a number of various servo horns and arms with mounting hardware.

Specfication:

Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.19sec/60° at no load
Operating Speed (6.0V): 0.15sec/60° at no load
Stall Torque (4.8V): 42 oz/in (3.0 kg/cm)
Stall Torque (6.0V): 49 oz/in (4.5 kg/cm)
Current Drain (4.8V): 7.4mA/idle, 160mA no load operating
Current Drain (6.0V): 7.7mA/idle, 180mA no load operating
Dead Band Width: 5usec
Operating Angle: 45° one side pulse traveling 450usec
Direction: Multi-directional
Motor Type: Cored Metal Brush
Potentiometer Drive: 4 Slider/Direct Drive
Bearing Type: Top Resin Bushing
Gear Type: Nylon
360 Modifiable: Yes
Connector Wire Length: 11.81" (300mm)
Weight: 1.52oz (43g)
