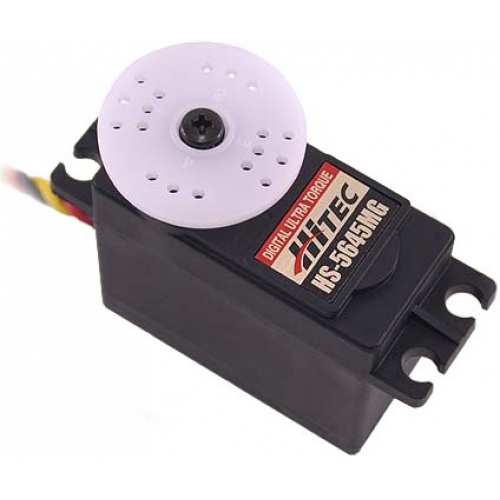

Hitec HS-5645MG Digital Torque [SOLD OUT]

Description

The HS-5645MG is the best overall digital servo when you also consider the price.  $55 for a 168 oz-in servo that was not digital would be a good deal but this servo is digital and is the best bang for the buck. Use this servo right out of the box and you will be amazed at how smooth and powerful it is. Take it a step further and purchase the hand held programmer and then the doors really open up as to what this servo can do. The combination of torque, speed, price and extreme holding power make it a favorite among top robot builders, pilots, and drivers. Special alloy gears called “Alumite” offer tremedous strength yet are lightweight as well.  We offer the HS-5645MG servo in several configurations, 90° stock rotation, 180° modified rotation, continuous rotation (potentiometer is left outside the servo case) and reverse rotation.

Specification:

Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.23sec/60° at no load
Operating Speed (6.0V): 0.18sec/60° at no load
Stall Torque (4.8V): 143oz/in. (10.3kg.cm)
Stall Torque (6.0V): 168 oz/in. (12.1kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8.8mA/idle and 400mA no load operating
Current Drain (6.0V): 9.1mA/idle and 500mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Bearing Type: Dual Ball Bearing
Gear Type: 3 Metal Gears and 1 Resin Metal Gear
Connector Wire Length: 11.81" (300mm)
Dimensions: 1.59" x 0.77"x 1.48" (40.6 x 19.8 x 37.8mm)
Weight: 2.1oz. (60g)
