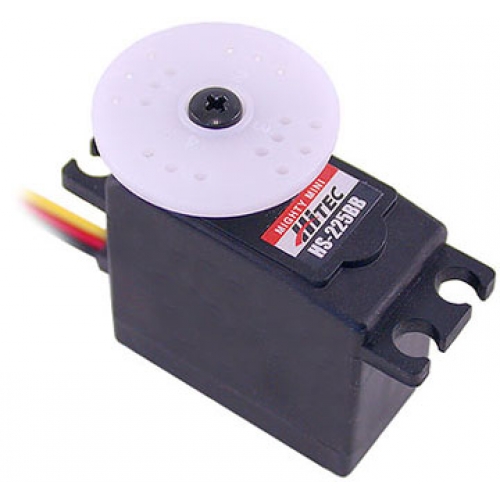

Hitec HS-225BB

Description

HS-225BB servos have been around for sometime now and for a good reason, performance and durability. This little servo offers the same and sometimes more power than standard size servos. The main gear rests on a single ball bearing on top and a bronze bearing on the bottom. The spline is standard Hitec 24 tooth so any standard Hitec horn or arms will fit perfectly.

Specification:

Control System: +Pulse Width Control 1500usec Neutral

Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.14sec/60° at no load
Operating Speed (6.0V): 0.11sec/60° at no load
Stall Torque (4.8V): 54.15 oz/in. (3.9kg.cm)
Stall Torque (6.0V): 66.65 oz/in. (4.8kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: No
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8mA/idle and 300mA no load operating
Current Drain (6.0V): 8.8mA/idle and 340mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Bearing Type: 1 Ball Bearing and 1 Oilite Bushing
Gear Type: Nylon
Connector Wire Length: 11.81" (300mm)
Dimensions: 1.27" x 0.66"x 1.22" (32.4 x 16.8 x 31mm)
Weight: 0.95oz (27g)
