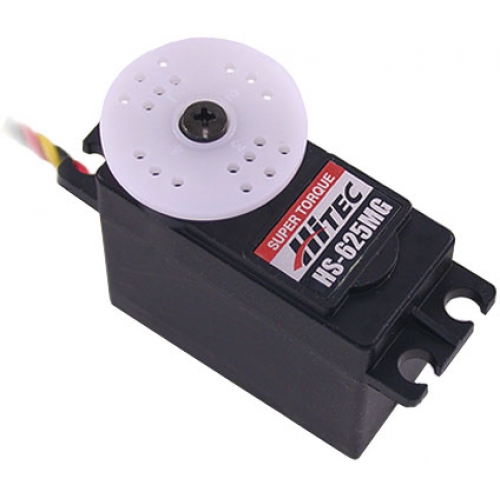

Hitec HS-625MG Ultra Speed Servo (6.8kg, 0.15s)

Description

The HS-625MG is one of the best metal geared servos for the money not to mention the power to speed ratio. At nearly 95 oz-in. of power with a transit speed of .15 sec. it is very powerful and yet very fast. This servo is also extremely easy to modify for wheeled robotic applications. If you are needing a lot more power, this servo works great in our ServoPower Gearboxes. We offer the HS-625MG in several configurations, 90° stock rotation, 180° modified rotation, continuous rotation (potentiometer is left outside the servo case) and reverse rotation.

Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.18sec/60° at no load
Operating Speed (6.0V): 0.15sec/60° at no load
Stall Torque (4.8V): 76.37 oz/in. (5.5kg.cm)
Stall Torque (6.0V): 94.43 oz/in. (6.8kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 450usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8.8mA/idle and 400mA no load operating
Current Drain (6.0V): 9.1mA/idle and 500mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Bearing Type: Dual Ball Bearing
Gear Type: 3 Metal Gears and 1 Resin Metal Gear
Connector Wire Length: 11.81" (300mm)
Dimensions: 1.59" x 0.77"x 1.48" (40.6 x 19.8 x 37.8mm)
Weight: 1.94oz. (55.2g)
