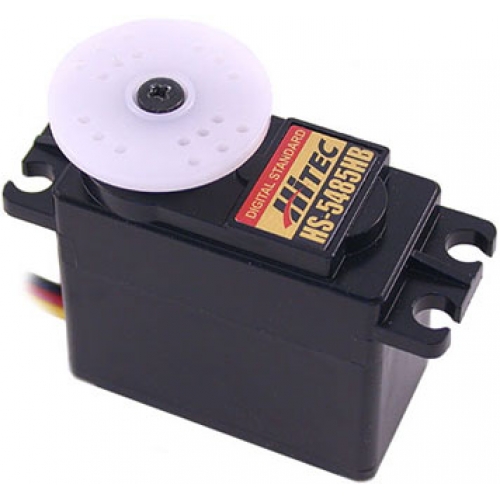

Hitec HS-5485HB (SOLD OUT)

Description

The digital wave is now sweeping across the servo world and Hitec is leading the way. The HS-5485HB is Hitec’s second digital standard servo. Adding the digital component to the already great HS-475HB means that the
HS-5485HB is even better. The torque numbers and speed are enhanced from the HS-475HB. The standing torque is nearly 5 times better and the precision has been increased. Being digital means the motor now receives the position signal 300 times per second rather than 30 times per second. This servo can also be programmed using our hand-held servo programmer. Need the servo to travel up to 180° no problem! Need to slow the servo down, no problem! You can do just about anything with Hitec digital servos in combination with the programmer.

Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.20sec/60° at no load
Operating Speed (6.0V): 0.17sec/60° at no load
Stall Torque (4.8V): 72oz/in. (5.2kg.cm)
Stall Torque (6.0V): 89 oz/in. (6.4kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8.8mA/idle and 400mA no load operating
Current Drain (6.0V): 9.1mA/idle and 500mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Bearing Type: Ball Bearing
Gear Type: Karbonite Gear
Connector Wire Length: 11.81" (300mm)
Dimensions: 1.57" x 0.78"x 1.49" (39.8 x 19.8 x 38mm)
Weight: 1.59oz. (45g)
