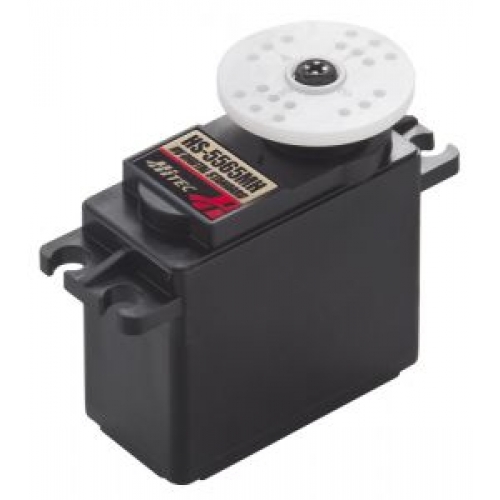

Hitec HS-5565MH High Speed Digital Coreless Servo (14kg, 0.09s) [Perfect for R/C Car and Heli] (SOLD OUT)

Click to enlarge

Price:	$54.50 (Rp 926,500.00)
Availability:	Out Of Stock
SKU:	HS-5565MH
Average Rating:	Not Rated

Description

Increase your performance not your budget with the high voltage, high speed, digital HS-5565MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation The HS-5565MH brings lightning speed and acceleration to your 1/10th scale touring cars, buggies and short course vehicles, helicopters up to .90-size and sport to high performance aircraft up to 25 percent.

Get all the speed and muscle without straining your wallet! Hitec is proud to introduce our economical, premium digital, high voltage, coreless motor servos, the HS-5565MH

Specifications

Motor Type:	Coreless Metal Brush
Bearing Type:	Dual Ball Bearings
Speed (6.0V/7.4V):	0.11 / 0.09 Seconds
Torque oz./in. (6.0V/7.4V):	153 / 194
Torque kg./cm. (6.0V/7.4V):	11 / 14
Size in Inches:	1.57 x 0.78 x 1.49
Size in Millimeters:	39.8 x 19.8 x 37.8
Weight oz.:	2.10
Weight g.:	60

Advanced Servo Specifications

Control System:	Standard HV Digital Circuit
Operating Voltage Range:	6.0 - 7.4 Volts DC
Operating Temperature Range:	-4° - 140° Fahrenheit
Idle Current:	4 mA
No Load Running Current (6.0V/7.4V):
Stall Current (6.0V/7.4V):	2100 mA / 2700 mA
Dead Band Width:	2 µs
Potentiometer Type:	4 Slider 1M Cycle
Connector Wire Length:	11.8 in / 300 mm
Connector Wire Gauge:	25 AWG
