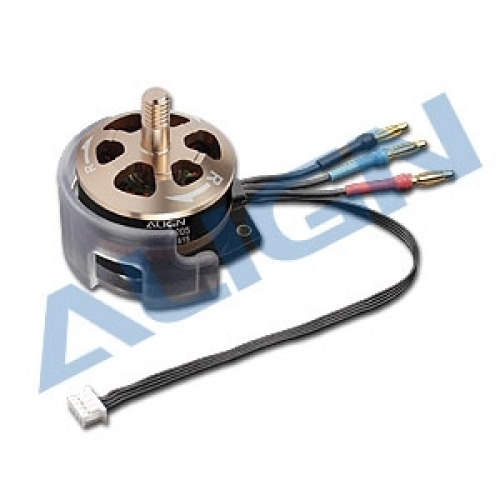

M425022XXW 2205 Motor Upgrade Set

Click to enlarge

Price:	$100.99 (Rp 1,716,830.00)
Availability:	In Stock
SKU:	M425022XXW
Average Rating:	Not Rated

Description

Product:

MR25 Power Tip:

Align Motor

Battery

Propeller
5040 [MP05032]	5045 [MP05031]	6040 [MP06031]

RCM-BL1806
[HML1806M01]
[HML1806M02]

3 Cell
[HBP13001]
[HBP18001]

4 Cell

Prohibited

RCM-BL2205
[M425022XXW]
[HML2205M01]
[HML2205M02]

3 Cell
[HBP13001]
[HBP18001]

4 Cell

Prohibited

Package:

Instruction:

Specification:

●Suitable for MR25 / MR25P
●Must with 2205 Motor Cover(M425020XXW) and 2205 Motor LED Mounts Board(M425021XXW)
●Brand new Align BL1806-2300kv multirotor race motor, based on Align's legendary motor core technology, featuring high torque, high speed, high efficiency, low power consumption, and low temperature.

Warning:
Must use Align 5045 propellers with 2205 motor, and prohibit from using 6 inch propellers.

●Input Voltage: 4S
●Max Continuous Current(3 min): 16.3A
●Max continuous Power(3 min): 240W
●KV Value: 2300KV
●Stator Arms: 12
●Magnet Poles: 14
●Dimension/Weight: Φ5xΦ28x25.7mm / 25.7g

Content:

●Input Voltage: 4S
