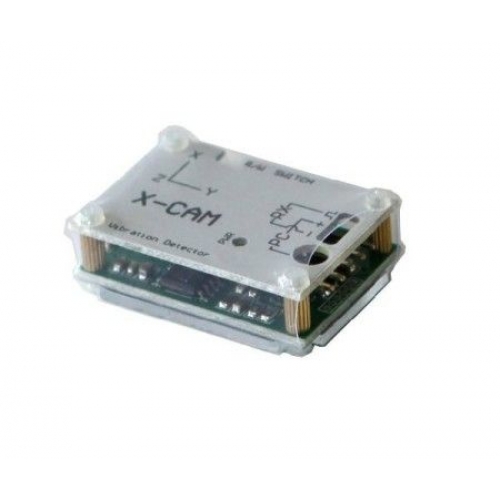

X-CAM Vibration Detector VIBDET

Click to enlarge

Price:	$49.50 (Rp 841,500.00)
Availability:	In Stock
SKU:	QA099
Average Rating:	Not Rated

Description

Features

Launch ways:

1. By manual： There a switch on the left side of the device, hold for 3 seconds for start work

2. By remote controller： Setup a switch channel for start.

The receiver provides the device 5v or 6v voltage for work, make sure anode and cathode is connected with correct.

Connect to PC：

Use attached USB adapter wire to connect PC, it does not need other power.

Vibration Detector analysis software provides 2 main charts

1. Time domain chart

Time domain chart for sensor based on continuous time return amplitude data, this data can probably understand the circumstance of vibration, but can not do the actual data of judgment, because in the time domain data no frequency information, so can not understand the amplitude in a band.

This indicates that in the 133 seconds of continuous motion weighted average data according to the time line, we can see the entire flight vibration is not stable, vibration changes a lot

2. Frequency domain chart

Frequency domain is based on the frequency of amplitude reference line reflects, from this figure, we can understand that the amplitude frequency

The frequency domain weighted average data map after conversion

Product Details

-Weight：8g
-Sampling frequency： 500Hz
-Amplitude range: -2g to +2g
-Frequency range: 1 to 200Hz
-Max record time: 180 sec
-Input voltage: 5 - 6V

Item Packing

-Vibration Detector x 1
-Servo wire x 1
-USB Adapter x 1
-Servo Y wire x 1 (only for COMBO version)
