FeiYu Panda2 Autopilot UAV Flight Control System w/FY-602 Data Radio Combo (SOLD OUT)

Description

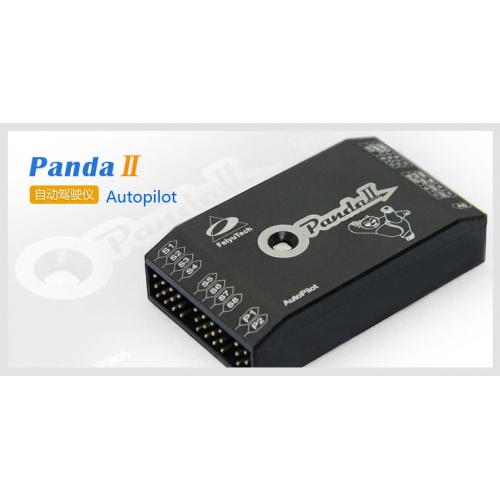

FeiYu Panda2 Autopilot UAV Flight Control System w/FY-602 Data Radio Combo

Package Included:
- Panda2 Autopilot Module
- Panda2 Adapter Board
- GPS mdoule(10HZ 5V)
- Air speed module
- Power management module
- GCS software CD
- FY-602 Data Radio

Panda2 Main Characteristic:
1. PANDA2 provides high-precision flight attitude measurement and control through the utilization of an integrated 32 bits microprocessor, GPS receiver, three-axis MEMS gyros, three-axis accelerometer, three-axis magnetic sensor, accurate barometric pressure sensor, attitude algorithm, Kalman filtering and data fusion algorithms.
2. Combined the attitude module and the control module, get more small volume and lighter weight.
3. Realize auto take off and auto land, maximum reduce the operating pressure.
4. Can accord to the plane internal space to adjust the install direction , easier to complete the connection.
5. 10Hz data rate GPS receiver, 35 seconds fast positioning time and accuracy of 2.5 meters CEP. The GPS can record the positional parameter with battery , the locating time greatly improved.
6. 100HZ inner attitude control, 10HZ outer navigation control.
7. Multi-channel mixed-control output can be adjusted with ease. The control options include:
 a) Elevator and rudder navigation
 b) Elevator, aileron and rudder navigation
 c) Elevator and aileron mixed-control (elevon) navigation
 d) V-tail rudder may be used, however a third party mixer have to be supplied by the user.
8. Three control modes:
 a) Manual Mode ;
 b) AFSS activated (Active Stabilization) ;
 c) Automatic navigation control.
9. Two automated navigation control modes:
 a) Air route navigation mode
 b) Mouse controlled flight mode.
10. Three special flight modes:
 a) Fixed circling mode;
 b) Auto Return to Home (RTH) mode;
 c) Auto take-off mode.

(On Fixed circling mode and Auto Return to Home(RTH)mode,Panda has 50m altitude protection limited,if the switch point altitude below 50m,Panda will automatic climb to 50m.)

11. Any standard RC transmitter and receiver can be used with this system.
12. Automated RTH (Return to Home) protection when there is a break in GCS communication link via the data radios. This time the system is working only in the data radio control mode.
13. Panda2 can Integrated automatic and manual aerial photography triggering. Equidistance or Timing taking photo. Combine with the POS data record module can record the current flight attitude info of the taking photo point, for example the Longitude, latitude, altitude, speed, etc.
14. The GCS software helps integrate Automated and Manual flight control modes in an easy to use display interface.
15. The GCS software includes electronic map formatting. By using the electronic map, aircraft route and tasks can be modified in real-time via your GCS computer.
16. Real time display on the GCS includes flight parameters such as main pack voltage, mAh consumed, Amp draw, GPS satellite strength and temperature of the autopilot unit.
17. All flight parameters are downloaded automatically by the GCS for instant playback.
18. IMPORTANT: GCS Function
- When using the Data Radio to control the aircraft, the controlling signals from the RC Receiver is directly sent to the Remote Adapter and converted to digital signals. The Data Radio will then upload the commands to your aircraft via the data radio.
- The GCS is only used to monitor telemetry and flight status of the aircraft. Transmission of commands is minimal. i.e. the aircraft is mainly controlled by your RC Transmitter. The autopilot still can realize most of the functions (for example, air route setting, RTH, circling) without the GCS.
19. Support the firmware update, can update by yourself

Aircraft Suitability
- Conventional, V tail, elevon, no aileron, etc. Various kinds of layout form of small and medium-sized vehicle automatic navigation and driving.
- All kinds of the airship automatic navigation and driving.

TY-602 Features:
1. Ultra low power transmission
- Transmission power: 500mW,
- High receiving sensitivity: -123dbm,
- Size: 63mm*43mm*15mm

2. Low power consumption
- Receiving current<45mA,
- Transmission current<360Ma,
- Sleeping current <1mA.

3. Saving power model
    FY-602 have three saving power models:awaken from Hardware, awaken from COM Port, awaken from Air;

4. ISM frequency band, not requiring on application of frequency point
    Carrier frequency of 433MHz，also capable of 915MHz.

5. High anti-interference and low BER (Bit error Rate)
    Based on the GFSK modulation mode, it adopts the efficient communication protocol. The actual bit error rate of 10-5 ~ 10-6 can be achieved when channel bit error rate is

6. Long transmission distance
    Within the range of visibility, the reliable transmission distance is（BER=10-3/1200bps）>3000m when the antenna height is greater than 3m (BER=10-3/9600bps).

7. Transparent data transmission
    Transparent data interface is offered to suit any standard or nonstandard user protocol. Any false data generated in the air can be filtrated automatically (What has been received is exactly what has been transmitted). The charge time for receiving and sending <10ms

8. Multi-channel and speed
    The standard FY-602 configuration provides 16 channels. to meet the multiple communication combination mode of the users. It has baud rate to be chosen such as 1200bps、2400bps、4800bps、9600bps、19200bps、38400bps. The wireless transmission rate is direct ratio with baud rate of interface to meet user’s equipment requirement.

9. High speed wireless communication and Large data buffer
    When the speed rate in the air is quicker than interface’s, allowing to transmit unlimited length data at one time, when the speed rate is slower or equal the interface’s, allowing the transmission of 255 Bytes long data frames at one time for more flexible programming by users.

10. Intelligent data control and the user doesn’t need to prepare excessive programs
    Even for semi duplex communication, the user doesn’t need to prepare excessive programs, only receiving/transmitting the data from the interface. FY-602 will automatically complete the other operations, such as transmission/receiving conversion in the air, control, etc.

11. High reliability, small and light
    Single chip radio- frequency integrated circuit and single chip MCU are used for lessened peripheral circuits, high reliability, and low failure rate.

12. Watchdog monitor
    Watchdog monitors the inner function, so it can change the traditional product structure and improve the product reliability.
