450S Brushless Motor(1500KV) RCM-BL450S [KX850120] (BEST FOR WING DRAGON, SPITFIRE and P51D] (SOLD OUT)

Description

Instructions:

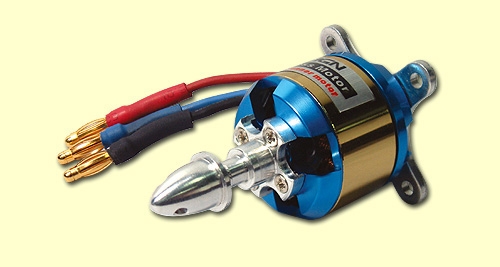

1500KV high efficiency, high torque, 12holes, 14poles outrunner brushless motor. Apply to F3A, 3D electric airplanes.
●Feature!
1. Pure metal high speed CNC precise processing.
2.the standardized automatic winding production. Low KV specification error.
3.Light weight.High efficiency.Long service life.

Specification:
●Input voltage: DC7.4~12.6v
●Max continuous current:16A
●Max output power:160W(prox.)
●KV value:1500KV
●Dimension: spindle 3.16x28x27.65mm
●Weight: 45g (prox.)

Accessories:
●Connector450 x 1
●Motor fixing plate x 1
●Nut x 1
●Cross screw(M2.6x4) x 2
●Cross screw(M3x4) x 2
●Cross screw(M2x4) x 4

plus
●ALIGN standard 3mm gilt terminal x 3set(Max. current 50A)
