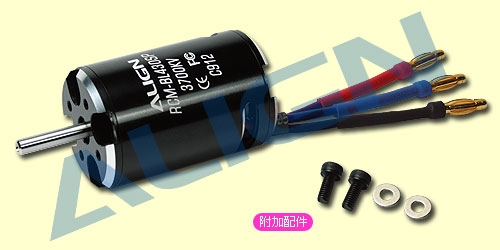

430SP Brushless Motor(3700KV) RCM-BL430SP [Discontinued to 450M 3500kV] (SOLD OUT)

Description

Instructions:
●3700KV high efficiency, high torque, 9holes, 6poles outrunner brushless motor.
●Feature!
1.The sport version 430 SP brushless motor has a wider operating range on high efficiency rotation speed. It still have the above average high torque output while overloading. This motor is suiatable for big change on load and speed operating condition.
2.Motor covers use thread to fix, features bump resistance.
3.Pure metal high speed CNC precise processing.
4.The standardized automatic winding production. Low KV specification error.
5.Special cooling fan design. Effectively reduces load rotation temperature of motor.
6.Light weight.High efficiency.Long service life.
7. approval(0506054)、 approval(0506069)。

Specification:
●Input voltage: DC7.4~14.8v
●Max continuous current: 37A
●Max output power:380W(prox.)
●KV value:3700KV
●Dimension: spindle 3.5x27.5x42.1mm
●Weight: 77g (prox.)

Accessories:
●ScrewX2(M2.6X6mm)
●WasherX2(Φ2.6XΦ5.8X0.6mm)
plus
●ALIGN standard 3mm gilt terminal(Male) x 3set(Max. current 50A)
