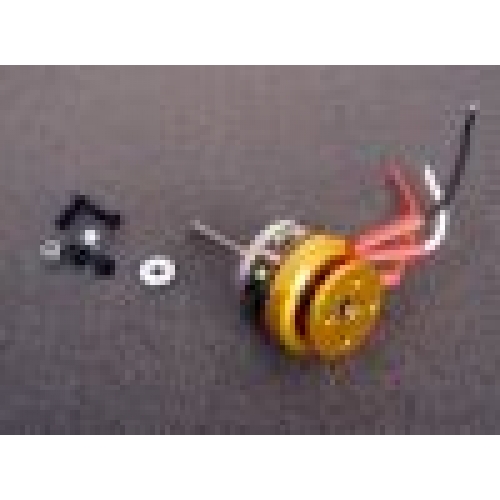

Tower Pro BM2409-18T Brushless Motor (1000kv) [DISCONTINUED & REPLACED BY DYS A2212-13 100kv Brushless Motor]

Description

Dimension:￠31*62.0mm
Weight: 65g
Voltage: 10V
Idle Current:0.9A
Battery:2-3 Lipo
KV:1000 RPM/V
Shaft Diameter:￠3.0
Max Efficency Current: 15.5A
Max Efficency: 66%
Max RPM r/min:10600 RPM/min
Max loaded current (A/60s): 20/60s
Max Power W/60s:180/60s
Suggest Propoller size:8*4APC 8*5APC

NOTE: THIS PRODUCT IS DISCONTINUED AND REPLACED BY DYS A2212-13 (1000kv) Brushless Motor which can be shown in the following link:

http://e-hely.com/index.php?route=product/product&path=27_114_369&product_id=3330
