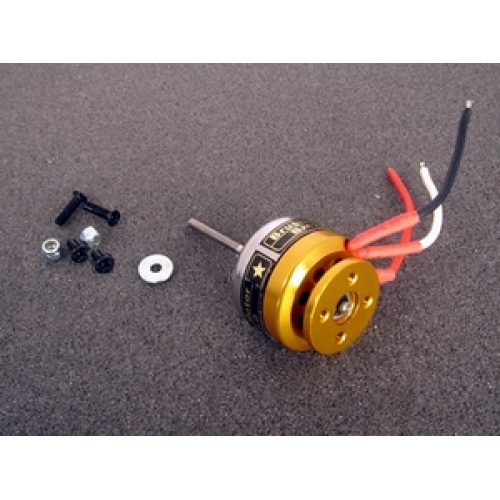

Tower Pro BM2409-12 Outrunner Brushless Motor (1600KV) [THIS PRODUCT IS DISCONTINUED AND REPLACED BY DYS A2212-26 2200kv]

Description

Specifcation:

Dimension:￠31*62.0mm
Weight: 65g
Voltage: 10V
Idle Current:1.9A
Battery:2-3 Lipo
KV:1600 RPM/V
Shaft Diameter:￠3.0
Max Efficency Current: 23A
Max Efficency: 66%
Max RPM r/min:10600 RPM/min
Max loaded current (A/60s): 25/60s
Max Power W/60s:200/60s
Suggest Propoller size:8*4APC 8*5APC

NOTE: THIS MOTOR HAS BEEN DISCONTINUED AND REPLACED BU DYS A2212-6 (2200kv) which can be shown in the following link:

http://e-hely.com/index.php?route=product/product&path=27_114_369&product_id=3332
