QUANTUM OUTRUNNER BRUSHLESS HELI MOTOR (4125- 560KV) [SOLD OUT]

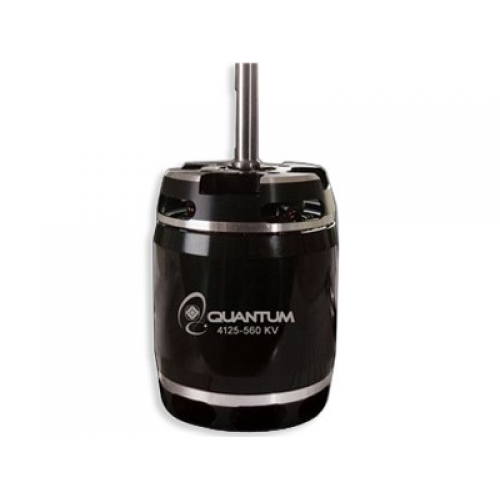

![QUANTUM OUTRUNNER BRUSHLESS HELI MOTOR (4125- 560KV) [SOLD OUT]](http://e-hely.com/image/cache/products/ERG-4125-560-500x500.jpg "QUANTUM OUTRUNNER BRUSHLESS HELI MOTOR (4125- 560KV) [SOLD OUT]") Click to enlarge |
|
Description
Specifications:
| Stator Diameter | 40MM |
| Stator Thickness | 25MM |
| No. of Magnetic Poles | 8 |
| No. of Stator Arms | 12 |
| Motor Kv | 560 RPM/Volt |
| Max Continuous Current | 70 Amps |
| Max Continuous Power | 3000 Watts |
| Weight | 340 Grams |
| Overall Shaft Length | 92.85mm |
| No-Load Current (lo) | 1.2 Amps@10V |
| Motor Resistance (Rm) | 0.034 Ohms |
| Outside Diameter | 49.8MM |
| Shaft Diameter | 8MM to 6MM |
| Body Length |
55.7MM |
