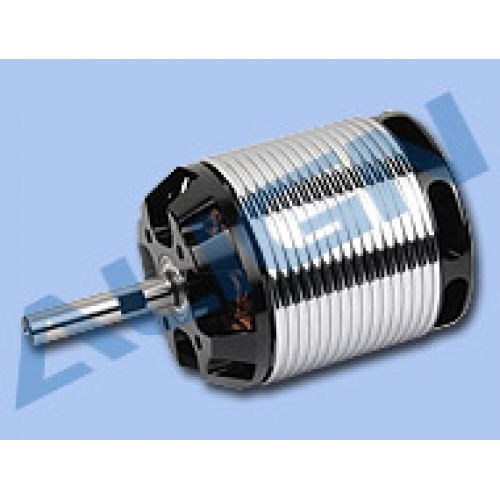

600MX Brushless Motor(510KV) RCM-BL600MX ( SOLD OUT)

600MX Brushless Motor(510KV) RCM-BL600MX ( SOLD OUT)
Click to enlarge
Price: $148.00 (Rp 2,516,000.00)
Availability: Out Of Stock
SKU: HML60M03
Average Rating: Not Rated

Description





Instructions: Specification:

1.The 600MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
2.The 600MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
3.Maintenance free, high torque, high efficiency, stable and quiet.
4.High-speed ball bearings, powerful magnetic outrunner rotor.

●Input voltage:DC11.1V-50.4V
●Max continuous current:75A/125A(5sec)
●Max output power:3300W/5500W(5sec)
●KV value:510KV
●Dimension: spindle Φ6xΦ45x59mm
●Weight: 340g (prox.)
Accessories:
●Socket screw(M3X10)X4
●Washer(Φ3XΦ8X1)X4
●ALIGN standard 4mm gilt terminal x 3
●M4 set screw x 1
