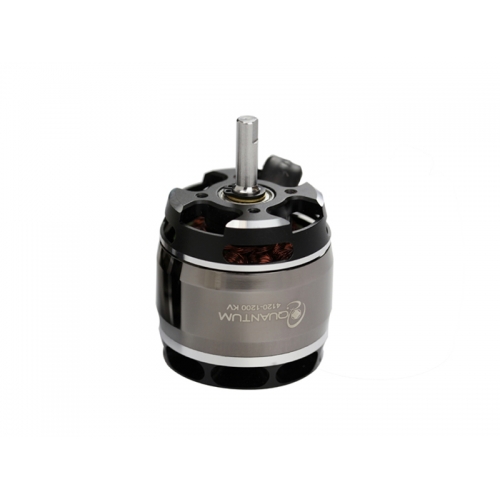

QUANTUM Outrunner Brushless Heli Motor (4120- 1200KV) - Goblin 500 [QT-4120-1200](SOLD OUT)

Click to enlarge

Price:	$139.99 (Rp 2,379,830.00)
Availability:	Out Of Stock
SKU:	QT-4120-120
Average Rating:	Not Rated

Description

Product description

Constructed with the utmost in quality with the very best in high performance materials, Quantum has altered the very DNA of brushless power, bringing forth a true quantum shift in all manners of RC power. Specified with high quality bearings, high strength steel, lightweight aluminum, and amazingly powerful neodymium rare earth magnets, Quantum motors are ready to alter the very dynamics of your everyday flight. Quantum brushless motors are deigned to change the way you fly; prepare to take hold of true brushless power that will open new realms of RC flight. Check out http://www.quantummotors.com for further information

Specifications:

Quantum Motor 4120-1200 series is for 3D fly .

Stator Diameter	40MM
Stator Thickness	20MM
No. of Magnetic Poles	8
No. of Stator Arms	12
Motor Kv	1200 RPM/Volt
Max Continuous Current	80 Amps
Max Continuous Power	1780 Watts
Max Peak Power	2200 Watts
Weight	290 Grams
No-Load Current (lo)	3.20 Amps@10V
Motor Resistance (Rm)	0.010 Ohms
Outside Diameter	49.8MM
Shaft Diameter	8MM to 6MM
Body Length	50.7MM
Overall Shaft Length	72.7mm
Bearings	ABEC-3 Bearings (8x16x5) 688ZZ
