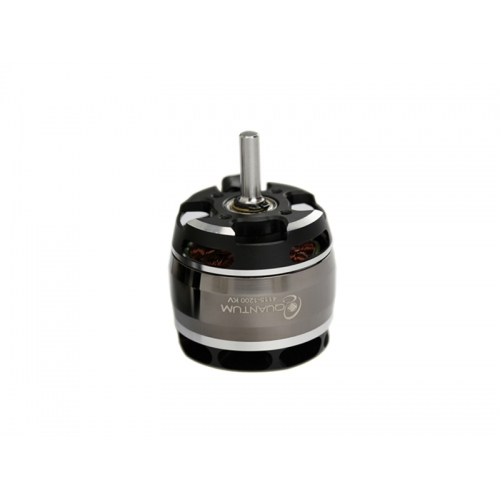

QUANTUM Outrunner Brushless Heli Motor (4115- 1200KV) - Goblin 500 [QT-4115-1200]

Click to enlarge

Price:	$109.99 (Rp 1,869,830.00)
Availability:	In Stock
SKU:	QT-4115
Average Rating:	Not Rated

Description

Product description:

Constructed with the utmost in quality with the very best in high performance materials, Quantum has altered the very DNA of brushless power, bringing forth a true quantum shift in all manners of RC power. Specified with high quality bearings, high strength steel, lightweight aluminum, and amazingly powerful neodymium rare earth magnets, Quantum motors are ready to alter the very dynamics of your everyday flight. Quantum brushless motors are deigned to change the way you fly; prepare to take hold of true brushless power that will open new realms of RC flight. Check out http://www.quantummotors.com for further information

Specifications:

Quantum Motor 4115-1200 series is for normal, sport fly .

Stator Diameter	40MM
Stator Thickness	15MM
No. of Magnetic Poles	8
No. of Stator Arms	12
Motor Kv	1200 RPM/Volt
Max Continuous Current	75 Amps
Max Continuous Power	1600 Watts
Max Peak Power	2000 Watts
Weight	240 Grams
No-Load Current (lo)	2.60 Amps@10V
Motor Resistance (Rm)	0.015 Ohms
Outside Diameter	49.8MM
Shaft Diameter	8MM to 6MM
Body Length	45.7MM
Overall Shaft Length	67.7mm
