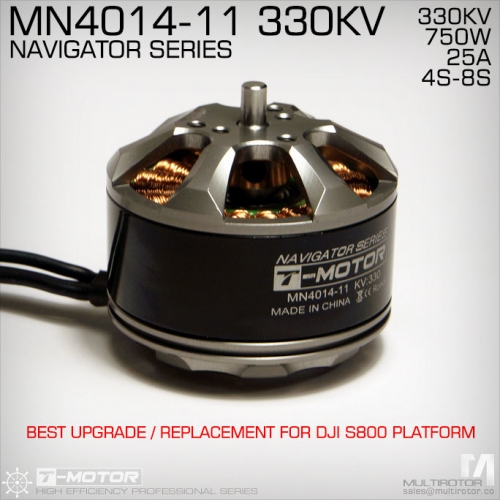

T-Motor Brushless Motor MN4014-11 KV330 (For DJI S800 Size) Model: MN4014-11-KV330 (SOLD OUT)

Description

NAVIGATOR MN4014-11 KV:330
BEST UPGRADE / REPLACEMENT MOTOR FOR DJI S800 PLATFORM
Configuration: 18N24P
Stator Diameter: 40mm
Stator Length: 14mm
Shaft Diameter: 4mm
Motor Dimensions: 44.8x34.5mm
Number of LiPo Cells: 4-8S
Weight: 149g
Wires Length: 550mm

Idle Current: 1,1A
Maximum Continuous Power 180S: 750W
Maximum Continuous Current 180S: 25A
Maximum Efficiency Current: 3-10A > 84%
Internal Resistance: 85mOhm

Included:
1. Propeller adapter 6mm
2. Propeller adapter 8mm
3. Set of screws.

Boxed product weight 320g
