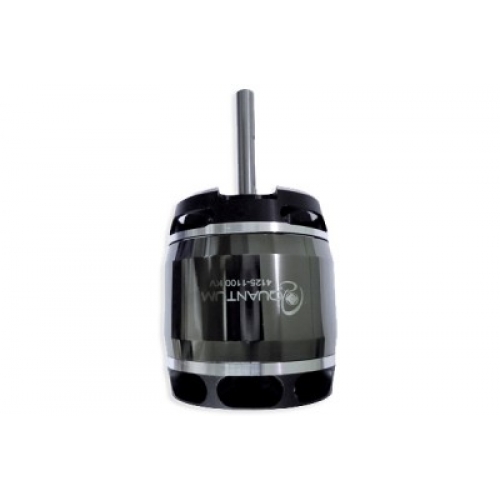

QUANTUM OUTRUNNER BRUSHLESS HELI MOTOR (4125- 1100KV) (SOLD OUT)

Click to enlarge

Price:	$139.50 (Rp 2,371,500.00)
Availability:	Out Of Stock
SKU:	QT-4125-1100
Average Rating:	Not Rated

Description

Constructed with the utmost in quality with the very best in high performance materials, Quantum has altered the very DNA of brushless power, bringing forth a true quantum shift in all manners of RC power. Specified with high quality bearings, high strength steel, lightweight aluminum, and amazingly powerful neodymium rare earth magnets, Quantum motors are ready to alter the very dynamics of your everyday flight. Quantum brushless motors are deigned to change the way you fly; prepare to take hold of true brushless power that will open new realms of RC flight. Check out http://www.quantummotors.com for further information

Technical Notes: Perfect use for Goblin 570 and similiar 600 sizes with 6S (battery) setup.

Specifications:

Stator Diameter	40MM
Stator Thickness	25MM
No. of Magnetic Poles	8
No. of Stator Arms	12
Motor Kv	1100 RPM/Volt
Max Continuous Current	100 Amps
Max Continuous Power	2200 Watts
Weight	340 Grams
Overall Shaft Length	92.85mm
No-Load Current (lo)	3.2 Amps@10V
Motor Resistance (Rm)	0.009 Ohms
Outside Diameter	49.8MM
Shaft Diameter	8MM to 6MM
Body Length	55.7MM
Bearings	ABEC-3 Bearings (8x16x5) 688ZZ
