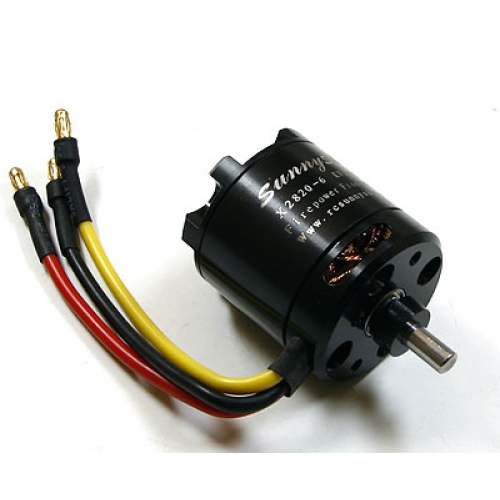

SUNNYSKY X2820 800KV Outrunner Brushless Motor (Suitable for Skywalker/Talon XUAV) (SOLD OUT)

Click to enlarge

Price:	$43.50 (Rp 739,500.00)
Availability:	Out Of Stock
SKU:	A063
Average Rating:	Not Rated

Description

Specification

Model:X2820-800KV
KV (rpm/v): 800
Non-load current: 10V/1.4A
Weight: 140g
Diameter: 35mm
Length: 58.5mm/ 40mm (with shaft/ without motor shaft)
Motor Shaft Diameter(mm): 5
Prop adaptor output shaft diameter: 6mm

X2820 KV800
Testing Data (for reference only):
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
EMP12x6	10V	21.6A	1.52kg	216	7.03
	11V	24.8A	1.68kg	272.8	6.15
	12V	28.1A	2.0kg	337.2	5.93
	13V	31A	2.18kg	403	5.4
	14V	34.2A	2.5kg	478.8	5.22
	14.8V	37.1A	2.83kg	549.08	5.15
JXF13x6 Wood	10V	26.5A	1.64kg	265	6.18
	11V	29.7A	2.02kg	326.7	6.18
	12V	33.9A	2.25kg	406.8	5.53
	13V	37.4A	2.49kg	486.2	5.12
	14V	40.5A	2.7kg	567	4.76
	14.8V	44.3A	3.0kg	655.64	4.57
XDL14x8 Wood	7.4V	23.8A	1.3kg	176.12	7.38
	8.5V	28.3A	1.58kg	240.55	6.56
	10V	34.5A	1.95kg	345	5.65
	10.5V	36A	2.08kg	378	5.5
	11.1V	38A	2.25kg	421.8	5.33
EMP14x7	7.4V	22A	1.3kg	162.8	7.98
	8.5V	26.5A	1.6kg	225.25	7.1
	10V	31.5A	1.98kg	315	6.28
	10.5V	33.8A	2.1kg	354.9	5.91
	11.1V	36.4A	2.28kg	404.04	5.64
