The Acrobrat by Ummagawd

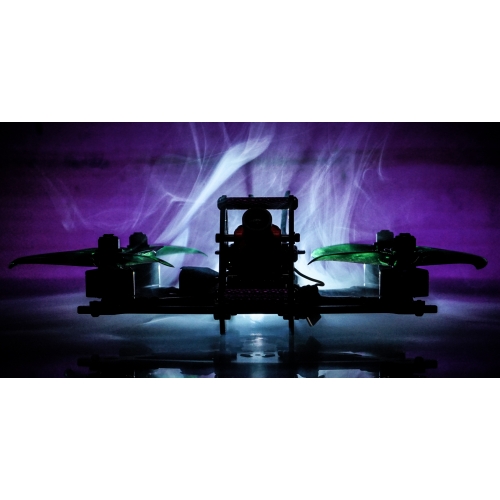

Note: Those are prototype pics! Frames will include grey standoffs instead of purple! Updated pictures will come soon.

Ummagawd created a miniquad that doesn’t intimidate newcomers, and doesn’t disappoint seasoned FPV pilots. A balance of size, budget and fun-factor, that encourages anyone to create awesome HD FPV videos, without risking expensive equipment, breaking laws, or scaring spectators. (Full description with more pictures coming soon)

Design Goals:

1. Deliver an HD freestyle quad for less than the price of a gopro session 5 (at the time $299)
2. A 3” quad that feels and flies like a 5”
3. Uses the runcam split mini, but mitigates the jello issues that the split is prone to
4. all in a package that is fairly durable and not intimidating for the pilot or spectators

Specs:

• Unibody Main plate = 3mm bi-axial Toray Carbon Fiber
• Side plates (w/adjustable FPV cam placement) = 2mm bi-axial Toray Carbon Fiber
• Battery plate (w/optional top mount FC holes) = 1.5mm bi-axial Toray Carbon Fiber
• Hardware = Stainless Steel
• Frame Dampeners = Custom Poly-urethane
• Motor to Motor (diagonal) = 163mm
• Motor to Motor (front to back/side to side) = 115mm
• Overall Frame size = 141x141mm
• Frame height = 55.5mm
• Dry Frame Weight =
• Motor bolt pattern = 12x12mm
• Motor c-clip hole = 6mm
•
