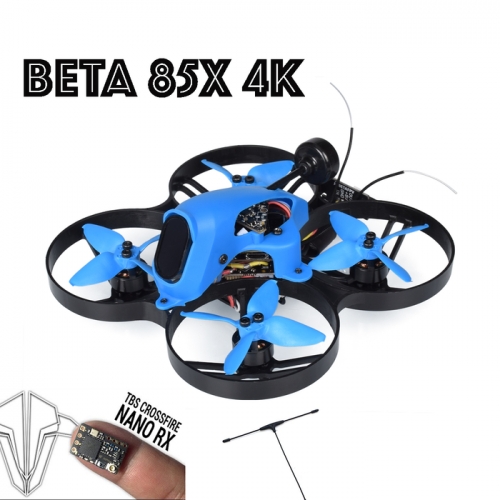

Beta85X 4K Cinewhoop 4S ( HD DVR ) with TBS Crossfire Rx & ND8 filter

Description

SPECIFICATION
BETA85X SPECIFICATIONS

Weight: 88.6g (without battery)
F405 V2 Flight Controller and 16A BLHeli_32 ESC
Motors: 1105 5000KV with connector
Props: 2" 4-Blades Props
Camera: CADDX Tarsier 4K
Canopy: Canopy for Tarsier 4K camera
Receiver option: TBS Crossfire
Recommend battery: 4S 450mAh Battery (Not including)
5.8G FPV antenna
Flight time: 4min - 6min with 450mAh 4S battery

FC SPECIFICATIONS

Find more details about this F405 V2 FC in another page.

CPU: STM32F405 (Overclock to 240MHz)
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Betaflight OMNIBUSF4SD (OBSD)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

ESC SPECIFICATIONS

Find more details about this BLHeli 32 ESC board in another page.

Support BLHELI_32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
Input voltage: 3-4S lipo
Cotinue current: 16A
Peak current: 19A
Firmware target: BETAFPV-16A-32bit
MCU: STM32F051K66
Camera SPECIFICATIONS

Find more details about this Caddx Tarsier 4K camera in another page.

Weight: 19.5g
FOV: 4KF 2.8, FOV 150°(16/9), FPV FOV 165°（4/3）
Lens: Dual lens 2.8 / 12Mega
Image Sensor: 12M SONY sensor
TV System: NTSC / PAL, can be changed
Anti-Shake: Hardware anti-shake
Scene Mode: Auto / Personage / Scenery / Defog
Recording Timing Larm: OFF / 1mins / 3mins / 5mins / 10mins
Horizontal Resolution: 1200TVL
Image: 16:9 / 4: 3 (changeable)
Camera OSD: Seperate OSD
The camera tilt angle is switchable from 20 degree to 30 degree with ND8 fliter.

Note:
1. TBS Crossfire Rx with Immortal Antenna is included in the package
2. Nd8 filter is included
3. User need to buy their own 4s lipo. Recommended size is 4s 450mAH
